Amarr 3552

Heavy-duty 2″ extruded aluminum full-view commercial sectional. Glass, solid, perforated, or louvered panels. Max 24’2″ × 20’1″.

Call 901-598-7979 for a commercial quote

Amarr commercial – Installed by Advanced Garage Door

All commercial garage doors

Call 901-598-7979 – Get a commercial quote
Commercial openers

Product gallery

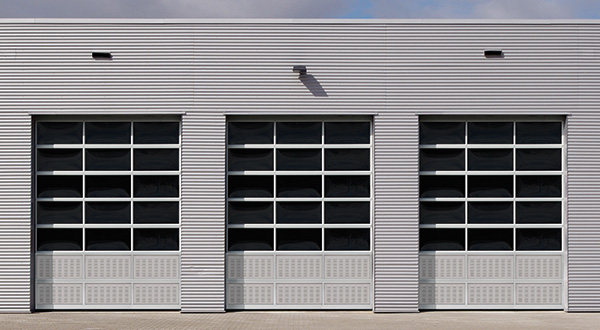

Amarr 3552 aluminum full-view sectional. Tap to enlarge.

Overview

About this Amarr line

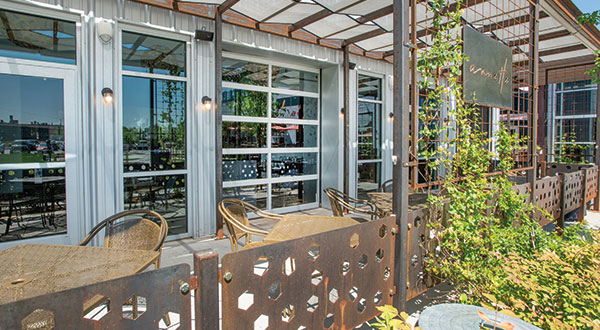

The Amarr 3552 aluminum door creates a clean style that is perfect for automotive showrooms and repair centers, service stations, car washes, fire houses, restaurants, and sports complexes. They can run as a normal overhead door or sit fixed in place — a clean full-view option for open-air openings (for example restaurant patio seating that opens to the dining room). A 2-inch thick extruded commercial-grade aluminum frame provides durability, low maintenance, and corrosion resistance.

Model: 3552 (heavy-duty aluminum full-view sectional)
Frame: 2″ extruded commercial-grade aluminum · stile & rail
Max size: 24’2″ wide × 20’1″ high · odd heights available · 1″ width increments
How you buy it: Quoted and installed by Advanced Garage Door – Memphis-area commercial install

Specifications (Amarr)

	Amarr 3552
Door Thickness	2″ (5.1cm)
Panel	Stile & Rail (full view)
Stile & Rail Spacing	44″ on center (end panels vary)
Exterior Texture	Smooth
Construction	Extruded aluminum · WaterLok joint & glazing seal
Insulation / R-value	n/a (aluminum full-view; glass options vary)
U-factor	n/a
Max Std Width	24’2″
Max Std Height	20’1″
Limited Warranty	5 Year
Duty	Heavy-duty aluminum full-view

Source: Amarr commercial product page. Specs can change – we confirm on your written quote.

Panel options

Mix glass, solid aluminum, perforated, or louvered panels for light, privacy, or ventilation.

Glass Panel (full view)

Solid Aluminum Panel

Perforated Aluminum

Louvered Ventilation

Glass and glazing options

Amarr-listed glazing choices (availability by project):

Clear Tint
Obscure
Green Tint
Bronze Tint
Gray Tint
GreyLite
Frost
Snow
Whiteout
Black Ice

Finishes

Anodize finishes (representative):

Clear Anodize

Dark Bronze Anodize

Black Anodize

Champagne Anodize

Copper Anodize

Medium Bronze Anodize

Powder coat / PVDF samples (many more factory colors available — see Amarr color cards):

White

Bone White

Sandstone

Dove Gray

Interstate Blue

Hartford Green

Colonial Red

Super Black

Sister light-duty line 3502 is Clear Anodize focused; 3582 is MultiView (long narrow glass). This page covers the heavy-duty full-view 3552.

Features and options

WaterLok joint & glazing seal: Wide tongue-and-groove joints with bulb seal and bottom weather seal for tighter air and water resistance
ClearView Aluminum Strut System: Adds strength up to 24′ wide without blocking the view
Heavy-duty through-bolt construction
Rapid Install / ThermaPro / Wind Load / LEED: Options as available on your project
Made in the USA
