Sectional Model 2742

Duty Rating: Heavy-Duty
Insulation/R-Value: 19.40
Layers: 3
Warranty: 10-Year
Price: $$$

download brochure

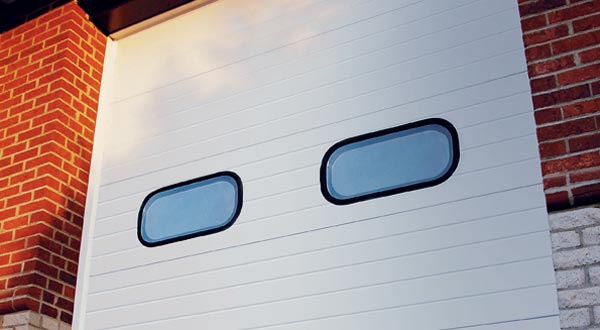

Sectional Model 2742

Amarr’s top-of-the-line high R-Value door is constructed with a thermal break, and uses foamed-in-place polyurethane insulation creating a strong monolithic panel that is energy efficient.

MAXIMUM R-VALUE
Amarr’s polyurethane insulation provides the best R-Values per inch when compared to other common types of sectional door insulation.

ECO-FRIENDLY
Amarr’s polyurethane foam is free of Ozone depleting Chlorofluorocarbons (CFC) while providing maximum insulation to help reduce the negative environmental impact of heating and cooling energy use.

Section Profile

Ribbed Stucco

Colors
  • True White
  • Sandtone
  • Commercial Brown
  • Commercial Gray
Construction
Model 2720 Garage Door Panel Construction

Steel Insulation Steel

Track
All Amarr Doors are available with both
2″ or 3″ track in Standard Lift, High Lift, Vertical Lift,
Low Headroom, and Follow the Roof Pitch. Custom track configurations are also available. For drawings and more information, please visit our downloads website.
Hardware
Amarr hardware includes minimum
14-gauge galvanized steel hinges and 13-gauge galvanized steel track brackets. All rollers have
minimum 10-ball bearings.
Springs
Torsion springs are oil tempered, helical wound and custom computed for each door for a minimum 10,000 cycle life. Optional springs are available up to 100,000 cycle life.
Windows
Window Panel Option - 24x12

24″ x 12″ Insulated

Window Panel Option - Full View

Full View

commercial garage door model 2042 window option

24″ x 6″ Insulated

26” x 13” insulated

26″ x 13″ Insulated

Garage Door Window Type - Perforated Full View

Perforated Aluminum Full View



Specifications 2742
R-VALUE19.40*
STEEL THICKNESS27/27 ga
PANEL DESIGNPencil Groove
STEEL EMBOSSMENTStucco
CONSTRUCTION LAYERSThree
MAX STD WIDTH32’2″
MAX STD HEIGHT20’2″
DOOR THICKNESS2″ (5.1cm)
