Sectional Model 2741

Duty Rating: Medium-Duty
Insulation/R-Value: 14.46
Layers: 3
Warranty: 10-Year
Price: $$

download brochure

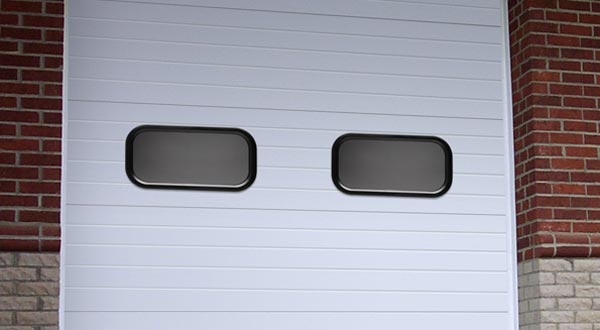

Sectional Model 2741

The model 2741 is an energy efficient model is designed to provide maximum value for your budget. The sections are insulated with foamed-in-place polyurethane which creates a strong monolithic panel.

MAXIMUM R-VALUE
Amarr’s polyurethane insulation provides the best R-Values per inch when compared to other common types of sectional door insulation.

ECO-FRIENDLY
Amarr’s polyurethane foam is free of Ozone depleting Chlorofluorocarbons (CFC) while providing maximum insulation to help reduce the negative environmental impact of heating and cooling energy use.



Section Profile

Ribbed Stucco

Construction
Steel Insulation Steel Construction

Steel + Insulation + Steel

Track
All Amarr Doors are available with both
2″ or 3″ track in Standard Lift, High Lift, Vertical Lift,
Low Headroom, and Follow the Roof Pitch. Custom track configurations are also available. For drawings and more information, please visit our downloads website.
Hardware
Amarr hardware includes minimum
14-gauge galvanized steel hinges and 13-gauge galvanized steel track brackets. All rollers have
minimum 10-ball bearings.
Springs
Torsion springs are oil tempered, helical wound and custom computed for each door for a minimum 10,000 cycle life. Optional springs are available up to 100,000 cycle life.
Windows
Window Panel Option - 24x12

24″ x 12″ Insulated

commercial garage door model 2042 window option

24″ x 6″ Insulated

26″ x 13″ Insulated

 Colors
  • True White
  • Sandtone
  • Commercial Brown
  • Commercial Gray



Specifications
R-VALUE14.46
STEEL THICKNESS27/27 Ga.
PANEL DESIGNPencil Groove
STEEL EMBOSSMENTStucco
CONSTRUCTION LAYERSThree
MAX STD WIDTH18’2″
MAX STD HEIGHT14’1″
DOOR THICKNESS1 3/8″(3.5cm)
